Product Details

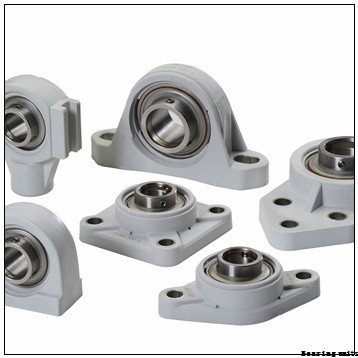

KOYO UKFL208 bearing units

Brand Name KOYO
Model Number UKFL208
Min.Order Quantity 1 pcs
Price Negotiable

Product Features

KOYO UKFL208 bearing Size Chart (mm/inches)

d60 mm
D110 mm
B22 mm
E100 mm
F72 mm
rs min1.5 mm
r1s min1.5 mm
Radial clearance classCN
Mass (without HJ ring)0.82 kg
Dynamic load, C97.5 kN
Static load, C0107 kN
Fatigue limit load, Cu13 kN
Nlim (oil)6,800 rpm
Nlim (grease)5,800 rpm
Min operating temperature, Tmin-20 °C
Max operating temperature, Tmax120 °C
Characteristic cage frequency, FTF0.42 Hz
Characteristic rolling element frequency, BSF5.98 Hz
Characteristic outer ring frequency, BPF06.7 Hz
Characteristic inner ring frequency, BPFI9.3 Hz
da min68 mm
da max71 mm
db min75 mm
Da max102 mm
ra max1.5 mm
r1a max1.5 mm
CategoryBearings
Inventory0.0
Manufacturer NameNTN
Minimum Buy QuantityN/A
Weight / Kilogram0.874
EAN4547359139174
Product GroupB04144
bore diameter:60 mm
static load capacity:107000 N
outside diameter:110 mm
precision rating:ISO Class 0
overall width:22 mm
maximum rpm:6800 rpm
flanges:(2) Outer Ring
bearing material:Hardened Alloy Steel
bore type:Straight
cage material:Nylon
number of rows:1
finish/coating:Uncoated
internal clearance:CN
closure type:Open
ring separation:Separable Inner Ring
fillet radius:1.5 mm
operating temperature range:-40 to 120 ºC
manufacturer product page:Click here
dynamic load capacity:97500 N

KOYO UKFL208 bearing units

KOYO UKFL208 bearing units Cad Models
